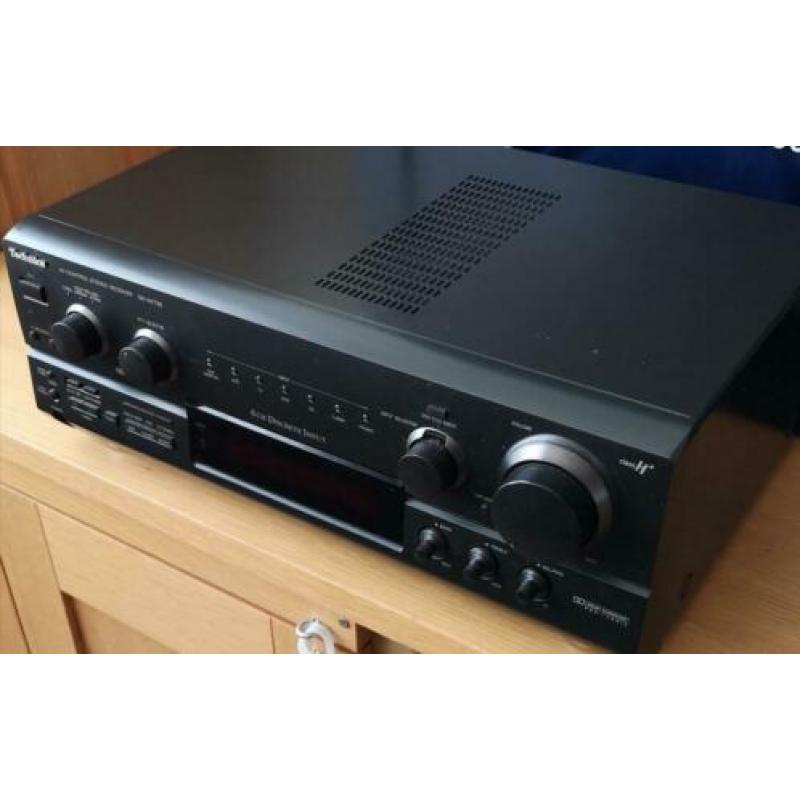

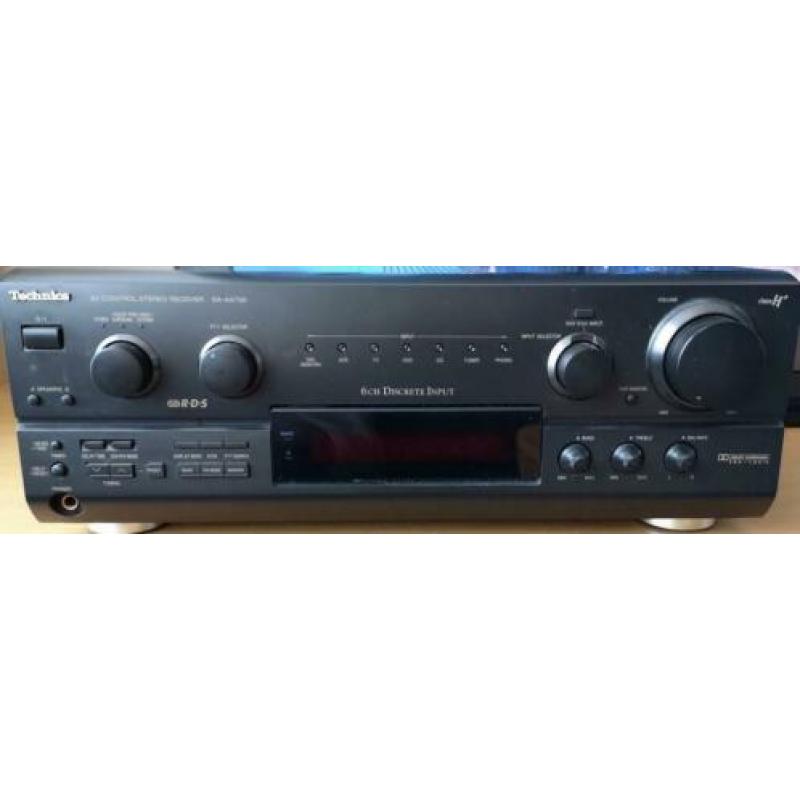

Technics SA-AX730 - AV receiver - 5.1 channel

---

Technics SA-AX730 - AV receiver - 5.1 channel

Afstandsbediening uiteraard er ook bij


SPECS
AUDIO
Amplifier Output Details
100 Watt - 6 Ohm - THD 1.0% - 1 channels (center)
100 Watt - 6 Ohm - THD 1.0% - 2 channels (front)
100 Watt - 6 Ohm - THD 1.0% - 2 channels (surround)
Response Bandwidth
20 - 20000 Hz

Total Harmonic Distortion
0.03 %

DIGITAL MEDIA & NETWORK PLAYERS
Digital player type
none
AUDIO SYSTEM
Type
AV receiver
Subcategory
AV components
Functions
AV receiver
Sound Output Mode
Surround Sound
Built-in Decoders
Dolby 3 Stereo, Dolby Pro Logic
Surround System Class
5.1 channel
Digital Sound Processor (DSP)
Yes
DSP Preset Qty
5
DSP Presets
Dance club, Hall, Live, Simulated Surround, Theater
Bass Control
Yes
Treble Control
Yes
Built-in Clock
sleep timer
POWER DEVICE
Frequency Required
50 Hz
Power Consumption Operational
240 Watt
Type
power supply
CD
CD type
none
HEADER
Brand
Technics
Product Line
Technics
Model
SA-AX730
Localization
English
Packaged Quantity
1
BUILT-IN DISPLAY
Type
fluorescent
TUNER
Signal-To-Noise Ratio
67 dB
Total Harmonic Distortion
mono: 0.2%, stereo: 0.3%
Station Memo Display
Yes
MISCELLANEOUS
Timer
sleep, wake
Color
black
Color Category
gray
AMPLIFIER
Input Channel Qty
6
Output Power / Total
500 Watt
Input Impedance
22 KOhm
Input Sensitivity
200 mV
AMPLIFIER OUTPUT DETAILS
Output Power / Channel
100 Watt
Output Impedance / Channel
6 Ohm
Total Harmonic Distortion (THD)
1.0 %
Channel Type
center, front, surround
Channel Qty
1, 2
RADIO
Tuner Type
digital
Tuner Bands
AM/FM
Tuner Frequency Range
520 - 1620 kHz, 522 - 1611 kHz, FM: 87.5 - 108 MHz
Tuning Display
fluorescent display
Antenna Form Factor
loop AM / wire FM
Supported RDS Functions
EON, PS, PTY, RT
CASSETTE SYSTEM
Type
none
DVD
Type
none
REMOTE CONTROL
Type
universal remote control
Remote Control Technology
infrared
ACCESSORIES
Supported Devices
CD player, DVD player, TV, VCR, cassette deck
AUDIO SPECIFICATIONS
Type
Amplifier
Frequency Response
20 - 20000 Hz
Signal-To-Noise Ratio
67 dB
MD SYSTEM
Type
none
POWER
Form Factor
integrated
BATTERY / POWER
Type
power supply

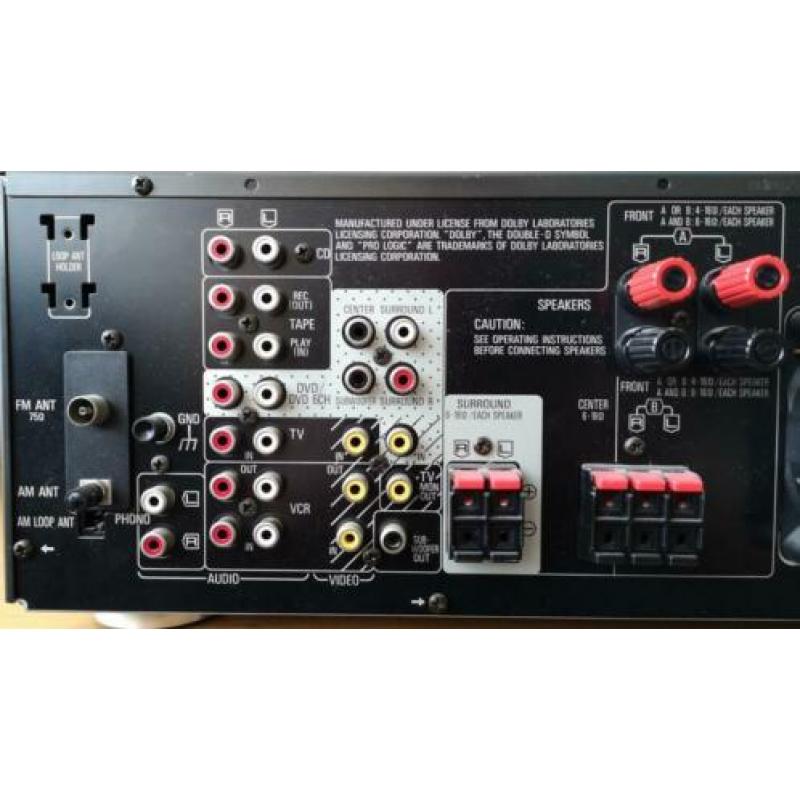

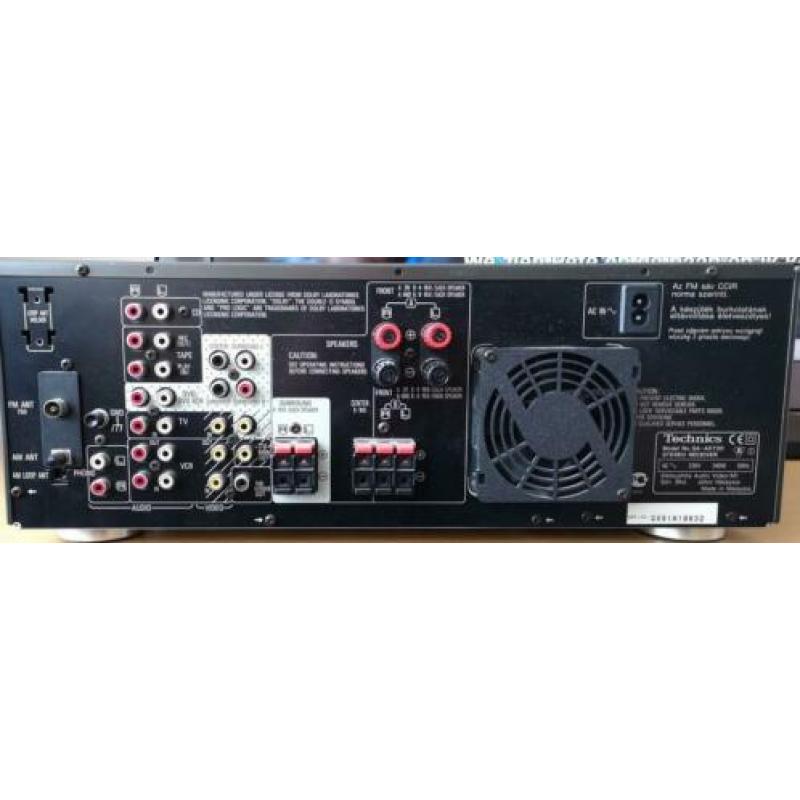

CONNECTIONS
Qty
1, 2, 3, 4
Type
5.1 channel audio line-in, AM antenna, FM antenna, audio input, center speaker output, composite video/audio input, front speakers output, headphones, rear speakers output, subwoofer output
Connector Type
RCA, RCA x 2, RCA x 3, RCA x 6, phone stereo 6.3 mm
Connector Location
front, rear

DIMENSIONS & WEIGHT DETAILS
Audio System Component
AV receiver

AV FURNITURE
Type
none

DIMENSIONS & WEIGHT
Depth 12.8 in
Width 16.9 in
Height 6.2 in
Weight 21.38 lbs

GENERAL
Manufacturer Technics
